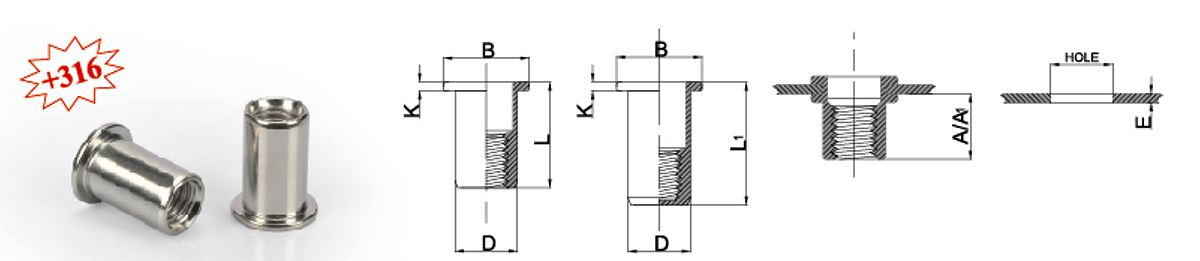

| 单位:mm | F=平头/P=圆柱体/A2=不锈钢/B=盲孔 | |||||||||
| 螺纹 | 编号 P/N | 铆接范围 | A Ref | 孔的大小 +0.1 0 | D +0.07 -0.1 | B 土 0.30 | K 土0.15 | L 土 0.30 | 盲孔 | |
| A1 | L1 | |||||||||
| M4 | FPA2-04M-20B | 0.5-2.0 | 6.8 | 6.0 | 5.9 | 8.5 | 0.8 | 10.5 | 11.3 | 16.0 |
| M5 | FPA2-05M-25B | 0.5-2.5 | 8.7 | 7.0 | 6.9 | 10.0 | 1.0 | 13.0 | 13.8 | 19.0 |
| M6 | FPA2-06M-30B | 0.5-3.0 | 9.8 | 9.0 | 8.9 | 12.3 | 1.3 | 15.5 | 15.0 | 21.0 |
| M8 | FPA2-08M-35B | 1.0-3.5 | 10.8 | 11.0 | 10.9 | 15.0 | 1.5 | 18.2 | 18.2 | 25.0 |
| M10 | FPA2-10M-40B | 1.0-4.0 | 13.7 | 13.0 | 12.9 | 17.0 | 1.6 | 21.0 | 19.4 | 27.0 |
| 盲孔部分产品代码后缀加“B”,例如:FPA2-04M-20B | ||||||||||
